Testing Bare Metal Orchestrator

Supported Operating Systems

https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/validated-hypervisors-and-operating-systems-7

License Requirements

https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/license-and-firmware-requirements-1

Architecture

  • What it does https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/bare-metal-orchestrator-introduction-7

User interfaces— Bare Metal Orchestrator provides a web-based User Interface (UI), a Command Line Interface (CLI) client, and an Application Programming Interface (API) to perform remote infrastructure management tasks. All requests and actions from these interfaces reach the global controller. Global Controller—The Global Controller (GC) is a fully contained management cluster that is deployed at the central office. The Global Controller can manage sites and servers that are associated with it. It constitutes core components and site components. For more information, see Bare Metal Orchestrator components.

BMO Features and Functions

https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/bare-metal-orchestrator-infrastructure-management-features-and-functions-7

Archecture with HA

GlusterFS provides distributed file storage for the Global Controller and the two redundant HA nodes in the control plane cluster. The distributed storage volumes replicate the Bare Metal Orchestrator cluster data when using PersistentVolumeClaim (PVC).

Distributed storage can be deployed locally in the three-node control plane cluster or externally. For external storage deployments, the VMs hosting the storage volumes must be reachable by the HA cluster. A minimum of three storage nodes are required.

Note: The remote site uses local-path as the storage class.

Setup

Note: I'm going to try the single node first

  1. Log in with installer / Dell1234
  2. Configure networking (just fill in the blanks) with vim /etc/network/interfaces
  3. Update DNS vim /etc/resolv.conf
  4. Update the hosts file with <address you used above> localregistry.io
  5. Reboot
  6. cd mw-ova-ansible
  7. Edit inventory/my-cluster/hosts.ini to have the following (replace the IP with your global IP address)
;  ansible-playbook -v site.yml -i inventory/sample/hosts.ini
[global_controller]
192.168.1.67

[ha]

[loadbalancer]

[gluster_nodes]
192.168.1.67

[secondary_ip]
; cp1 - secondary IP address. set this for single node and HA cluster. (OPTIONAL)
; cp2 - secondary IP address. set for HA cluster. (OPTIONAL)
; cp3 - secondary IP address. set for HA cluster. (OPTIONAL)

[node]
; host1
; host2

[node-remove]
; host1

[hosts]
192.168.1.67 ansible_python_interpreter=/usr/bin/python3
; 192.168.dd152.160 ansible_python_interpreter=/usr/bin/python3
  1. Edit inventory/my-cluster/group_vars/all.yml and change gluster_volume_type to "none"
  2. Run lsblk and make sure that you see:
  3. Note: on mine the swap drive wasd SDA5 and I choose to ignore it. We'll see if I'm punished.
sda
 ——sda1
 ——sda2
 ——sda3
sdb
 ——sdb1
 ```

9.  Update singlenode-site.yaml with your info
10. Run

sudo ansible-playbook ssh-copy-heketi.yaml -i inventory/my-cluster/hosts.ini sudo ansible-playbook setup.yaml -i inventory/my-cluster/hosts.ini


### Create a User for Global Admin

1. On BMO create a YAML file with the below

name: Admin email: admin@dell.com country: USA city: Denver organization: Dell orgUnit: BDC province: Co roles: - global-admin


2. After you have created the file run `bmo create user -f <username>.yaml > <config>.yaml`
3. Download the output file and browse to `https://BMO_ADDRESS`
4. Use the config file to login

## Deploy a Server

TODO

## Questions

- I see the API proxy - how does billing / licensing work if you are offline?

## Problems

- A lot o the documentation links are broken. Ex:
  - https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/managed-device-discovery-overview-1#GUID-C1AEBE7E-0569-4E04-83CB-5CD77FFA6615
  - The mMetadata link for servers: https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/create-a-server-or-multiple-servers-and-update-configurations-3#GUID-12309190-709C-4436-8937-D367B5978993

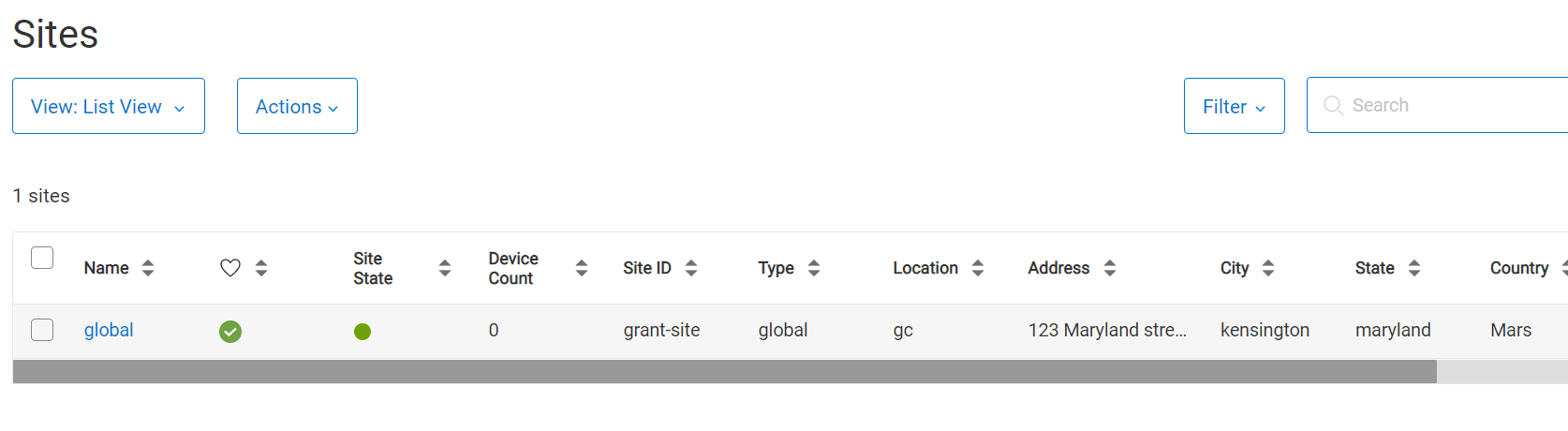

- Error when adding server. When I was in sites I just used the name.
  - I had to look under inventory, actions, discover device to realize that the global site name was actually gc
- This link is broken: https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/create-a-server-or-multiple-servers-and-update-configurations-3#GUID-AF06D60B-3E6D-46A3-9722-B3D2E0D44BCB on https://infohub.delltechnologies.com/l/bare-metal-orchestrator-1-2-command-line-interface-user-s-guide-1/create-a-server-or-multiple-servers-and-update-configurations-3

![](images/2022-10-12-14-31-59.png)

dell@bmo-manager-1:/tmp$ bmo create server -f r7525_perc.yaml Failed to create server in the 'metalweaver' namespace, server :dell-perc-r7525, reason: site does not exist: global

dell@bmo-manager-1:/tmp$ cat r7525_perc.yaml apiVersion: mw.dell.com/v1 kind: Server metadata: name: dell-perc-r7525 labels: profile: baseline-profile site: global spec: # Add fields here bmcEndPoint: "https://192.168.1.46" userName: "root" password: "password"


- It would be helpful if the help were contextual. Ex: `bmo create --help` returns the command help fur create rather than the generic BMO command
- It would be helpful to have a way to pretty print the output of something like `bmo create hardwareprofile -f <FILE>`
- Error I received on import was

dell@bmo-manager-1:~$ bmo create hardwareprofile -f hw_pf_bios.yaml Failed to create hardware profile in the 'metalweaver' namespace, reason: HardwareProfile.mw.dell.com "r7525-profile" is invalid: [spec.server.bios.attributes.numLock: Unsupported value: "true": supported values: "On", "Off", spec.server.bios.attributes.setBootOrderEn: Invalid value: "AHCI": spec.server.bios.attributes.setBootOrderEn in body should match '^$|^((\w+|*).(\w+|*).(\w+|*)(-(\w+|*))((\w+|*))(\:((\w+|*).(\w+|*).(\w+|*)(-(\w+|*))((\w+|*)))))(\,(\w+|*).(\w+|*).(\w+|*)(-(\w+|*))((\w+|*))(\:((\w+|*).(\w+|*).(\w+|*)(-(\w+|*))((\w+|*)))))*$', spec.server.bios.attributes.serialPortAddress: Unsupported value: "Com": supported values: "Com1", "Com2", spec.server.bios.attributes.conTermType: Unsupported value: "Vt": supported values: "Vt100Vt220", "Ansi", spec.server.bios.attributes.tpmSecurity: Unsupported value: "true": supported values: "On", "Off", "OnPbm", "OnNoPbm", spec.server.bios.attributes.usbManagedPort: Unsupported value: "true": supported values: "On", "Off", spec.server.bios.attributes.pxeDev1Interface: Invalid value: "NIC": spec.server.bios.attributes.pxeDev1Interface in body should match '^NIC.[A-Za-z]+.[0-9]+-[0-9]+-[0-9]+'] ```

but in my file I had NumLock: On which is confusing because I did properly have numlock set to On. The real problem was that it wanted numLock instead of NumLock

Bug Report

See Bug Report
